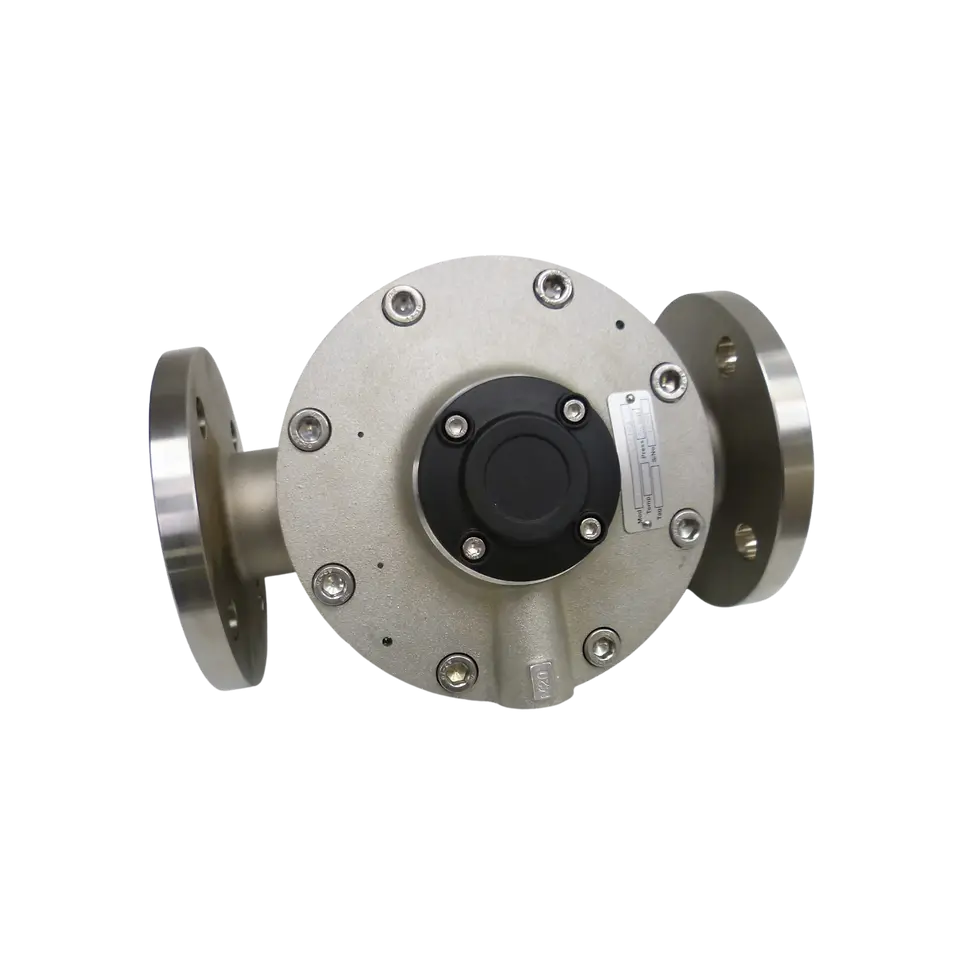

The FLUIDEX MOGF050S is a precision oval gear flowmeter designed for measuring liquid flow rates with high accuracy and repeatability. With a connection size of 2" (50mm), it covers a flow range of 8 to 120 GPM (30-450 LPM).


The MOGF050S features a body made of 316L stainless steel, providing excellent resistance to corrosion and wear. It can withstand pressures up to 285 PSI (20 BAR) with threaded ends. It also offers various options for process connections, including:

  • BSPP (G) female threaded (ISO 228)
  • NPT female threaded
  • ANSI-150 RF flanged
  • ANSI-300 RF flanged
  • PN16 DIN flanged


The stainless steel body of the MOGF050S makes it an ideal choice for applications where a higher level of chemical resistance is required, or where the flowmeter may be exposed to harsh environments. Its versatility in terms of process connections makes it a great option for a wide range of applications that require flow rates between 30-450 LPM.


Overall, the FLUIDEX MOGF050S is an excellent choice for those in need of a high-precision flowmeter with a stainless steel body that can withstand harsh environments and provide reliable and accurate measurements.
